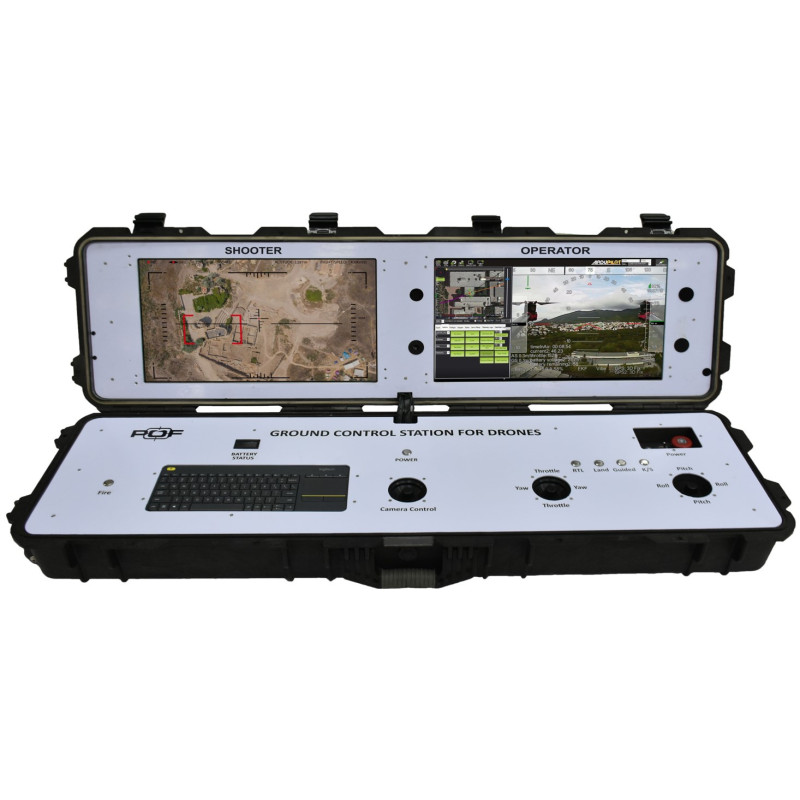

Ground Control Station

Product Overview

The Invoblaze Ground Control Station (GCS) represents the pinnacle of command and control technology for unmanned aerial operations. This comprehensive system integrates advanced hardware, sophisticated software, and ergonomic design to provide operators with unprecedented situational awareness and mission control capabilities for UAV fleets in military, law enforcement, and commercial applications.

Key Features

• Multi-Vehicle Control: Simultaneous control and coordination of multiple UAVs with intelligent task management.
• Real-Time Telemetry and Analytics: Live data feeds with predictive analytics for mission insight and anomaly detection.
• Secure Communications: AES-256 encryption, failover comms, and frequency-agile radios for protected operations.
• Mission Planning & Simulation: Graphical tools for creating, validating, and rehearsing mission scenarios.
• Augmented Reality Visualization: Real-time overlays on 3D maps and video for spatial awareness and decision-making.

Technical Specifications

Processing System

• Intel Xeon W-3275 (28 cores, up to 4.6GHz)
• NVIDIA RTX A6000 GPU with 48GB GDDR6
• 128GB DDR4 ECC RAM
• 2TB NVMe SSD + 8TB RAID 5 storage
• Real-time hardened Linux OS

Display System

• Triple 32" 4K HDR primary monitors (1000 nits)
• Capacitive multi-touch support
• 15" tactical display, sunlight readable
• AR overlay engine with GPU acceleration

Communication Systems

• RF Datalinks: L, S, C, Ku bands
• Data Rate: Up to 100 Mbps
• Control Range: 200+ km LOS, unlimited via satellite
• AES-256 encryption, zero-knowledge authentication
• Phased array antenna with auto-tracking

Physical Specs

• Dimensions: 1200mm × 800mm × 1600mm
• Weight: 120kg with UPS
• IP65 and MIL-STD-810G compliant
• Temp Range: -20°C to +55°C (operating)
• Humidity: 0–95% non-condensing

Power System

• Input: 100–240VAC or 24VDC vehicle input
• Battery Backup: 30 minutes full-load UPS
• Power Conditioning: Surge protected and isolated

Software Capabilities

User Interface

• Role-based profiles (pilot, mission commander, etc.)
• Custom drag-and-drop layouts
• Touch, keyboard, joystick, and voice input

Mission & Vehicle Management

• Hierarchical planning with nested tasks
• RTK GPS, autonomous path planning, obstacle avoidance
• Formation flight and coordinated actions
• Sensor tasking, target tracking, and cross-cueing

Data Management

• Real-time data processing and recording
• Anomaly detection with alerts
• Encrypted storage with audit logs
• Export to CSV, XML, and other formats

Performance Metrics

• Up to 12 actively controlled UAVs, 50+ monitored
• Control Latency: <100ms; Position Accuracy: <10cm with RTK
• Failsafe: <50ms response time
• MTBF: 10,000+ hours; System Availability: >99.9%
• FIPS 140-2 Level 3 cryptography and intrusion protection

Deployment Options

• Fixed Installation: Operations center with high-capacity, redundant systems.
• Mobile Command Post: Vehicle-mounted for field use with self-sustaining power.
• Tactical Field System: Man-portable with simplified interface and hot-swap batteries.

Integration Capabilities

• C4ISR: STANAG 4586, Link 16, COP integration
• Vehicle Support: SDKs, MAVLink, UCS, and plug-in architecture
• Sensors: Real-time integration, fusion, and processing

Training & Support

• Basic to advanced operator and mission training
• Maintenance training and diagnostic tools
• 24/7 tech support, remote assistance, field servicing

Applications

• Military: ISR, combat support, force protection
• Law Enforcement: Tactical response, surveillance, evidence collection
• Commercial: Inspection, agriculture, surveying

Case Studies

• Military Recon: Improved situational awareness and force protection
• Urban Law Enforcement: 40% improvement in decision-making
• Industrial Inspections: 35% reduction in costs, increased coverage

Ordering Information

The Invoblaze Ground Control Station is available in multiple configurations with extensive customization options. For consultation or a live demonstration, contact our sales team at sales@invoblaze.com or call 0320-0810266.
