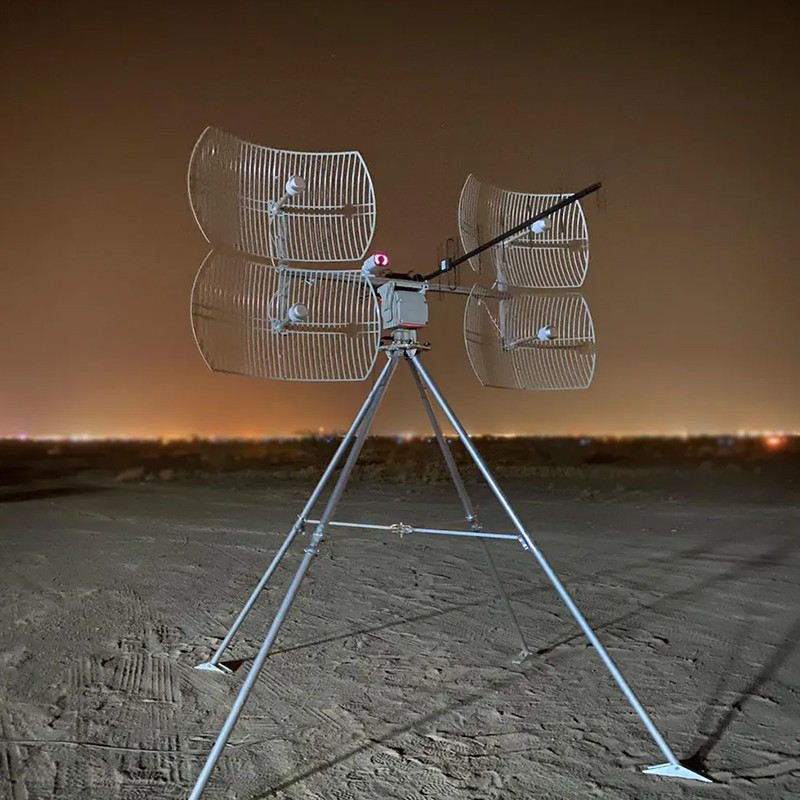

Antenna Tracking System

Precision Tracking for Uninterrupted UAV Communications

The Invoblaze Antenna Tracking System (ATS) represents the pinnacle of UAV communication technology, designed to maintain robust, uninterrupted links between ground control stations and aerial platforms across extended operational ranges and challenging environments.

System Overview

The Invoblaze ATS utilizes advanced RF tracking algorithms and precision mechanical systems to automatically locate, track, and maintain optimal signal strength with airborne assets. The system continuously adjusts antenna positioning in real-time, compensating for aircraft movement, environmental interference, and geographical obstacles.

Key Features

• Multi-Band Compatibility: Supports simultaneous tracking across multiple frequency bands (UHF, L-band, S-band, C-band)
• High-Precision Tracking: Sub-degree accuracy with advanced predictive algorithms for maintaining lock during temporary signal loss
• Rapid Target Acquisition: Automatic signal detection and lock within seconds of deployment
• Modular Design: Configurable with various antenna types and sizes based on mission requirements
• Ruggedized Construction: MIL-STD-810G compliant for operation in extreme environments
• Integrated Signal Analysis: Real-time signal quality metrics and interference detection
• Autonomous Operation: Self-calibrating system with minimal operator intervention required

Technical Specifications

Advanced Capabilities

Multi-Target Tracking

The Invoblaze ATS can be configured for multi-target operations, allowing a single system to track and maintain communications with multiple UAVs simultaneously through intelligent time-division multiplexing and predictive positioning algorithms.

Integrated Signal Processing

Our proprietary signal processing technology filters environmental noise, mitigates jamming attempts, and optimizes signal quality even in contested electromagnetic environments, making the system ideal for military and security applications.

Mesh Network Integration

The ATS seamlessly integrates with mesh network architectures, enabling extended range operations through relay capabilities and maintaining network integrity across distributed operational areas.

Automated Health Monitoring

Continuous self-diagnostic routines monitor system performance, predict potential failures before they occur, and provide maintenance alerts to ensure maximum operational availability.

Deployment Configurations

Mobile Tactical Deployment

Mounted on ruggedized vehicles or trailers, the mobile configuration provides rapid deployment capabilities for field operations, supporting quick-reaction missions and temporary command posts.

Fixed Installation

Permanent installations provide continuous coverage for regular flight corridors, test ranges, and operational bases with enhanced weather protection and redundant systems.

Maritime Deployment

Specialized maritime variants feature enhanced stabilization systems to compensate for ship movement, salt-fog protection, and integration with vessel navigation systems.

Integration Capabilities

• GCS Integration: Direct interface with major Ground Control Station systems
• Network Centric: Full IP-based control and monitoring
• API Support: Comprehensive API for custom integration requirements
• Data Recording: Integrated logging of all tracking data for post-mission analysis
• Third-Party Compatibility: Support for industry-standard protocols and interfaces

Applications

• Long-Range UAV Operations: Extend operational range beyond line-of-sight limitations
• Military Reconnaissance: Maintain secure communications for ISR missions
• Border Security: Support persistent surveillance operations along extended perimeters
• Disaster Response: Rapidly deployable communications for emergency operations
• Research & Development: Reliable telemetry links for experimental aircraft testing
• Maritime Patrol: Extended communications range for offshore monitoring

Customization Options

• Frequency Band Optimization: Custom RF configurations for specific operational environments
• Specialized Antenna Integration: Support for customer-specified antenna systems
• Enhanced Environmental Protection: Additional ruggedization for extreme environments
• Covert Operations Package: Low-profile configurations with minimal RF and visual signature
• Extended Range Options: High-gain antenna configurations for ultra-long-range operations

Support and Training

• Operator Training: Complete training program for system operators
• Maintenance Certification: Technical maintenance training for support personnel
• 24/7 Technical Support: Around-the-clock access to technical expertise
• Software Updates: Regular firmware and software updates with enhanced capabilities
• Extended Warranty: Comprehensive warranty and maintenance programs available

Why Choose Invoblaze ATS

The Invoblaze Antenna Tracking System represents the culmination of years of research and field experience in UAV communications. Our systems are trusted by military organizations, government agencies, and commercial operators worldwide for mission-critical applications where communication reliability is paramount.

Contact our technical team today to discuss how the Invoblaze ATS can enhance your UAV operations with unparalleled communication reliability and extended operational range.
